crucialDistortion - Distortion Pedal |
|
|

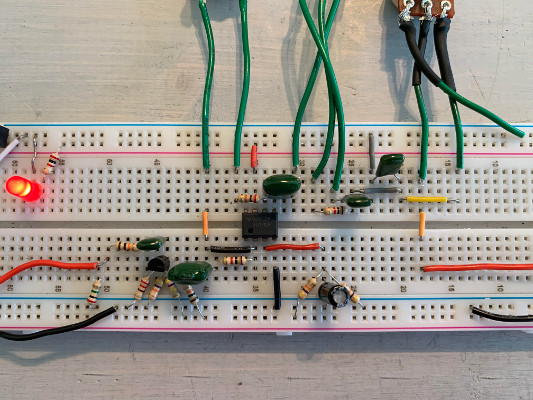

This is an overdrive circuit that uses an N3904 NPN transistor as a preamp into a TL071 op-amp. The gain is very high and it creates a grungy, dirty overdriven effect. It has Drive, Tone and Volume controls. Here's what it looks like on the breadboard. |
 |
 |

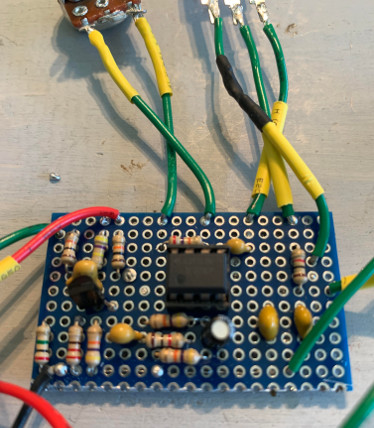

And here's what it looks like on the PCB. I used ceramic caps instead of the giant film caps in the name of saving space. I made it True-Bypass on the offboard wiring. |
|

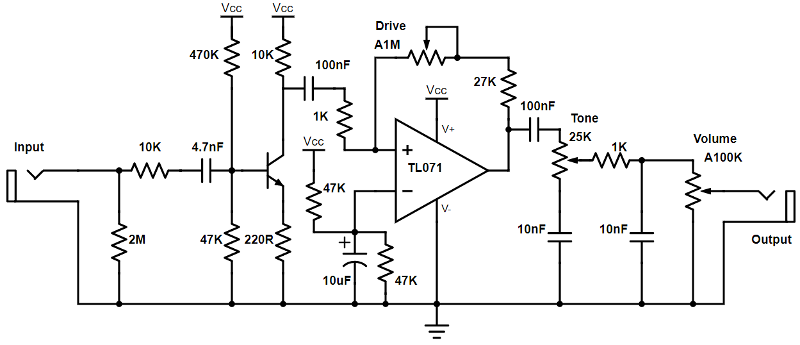

- SCHEMATIC |
 |
