crucialDrive - Overdrive Pedal |
|
|
|

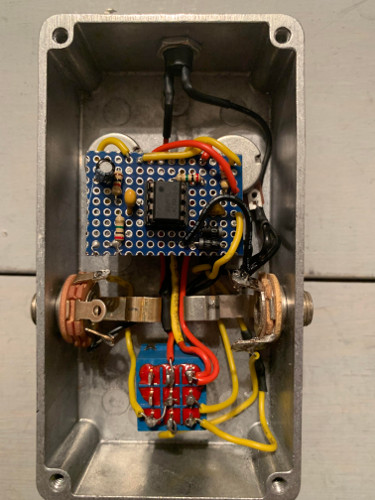

This is an overdrive/fuzz pedal built with just a few components. Very similar to the crucialDistortion pedal, but with a couple added diodes for fuzz. It has Level and Drive controls. Opamp is Lm741. Diodes are N4001. Here's a gut shot. It's a little bit messy, don't judge .. |
 |
|

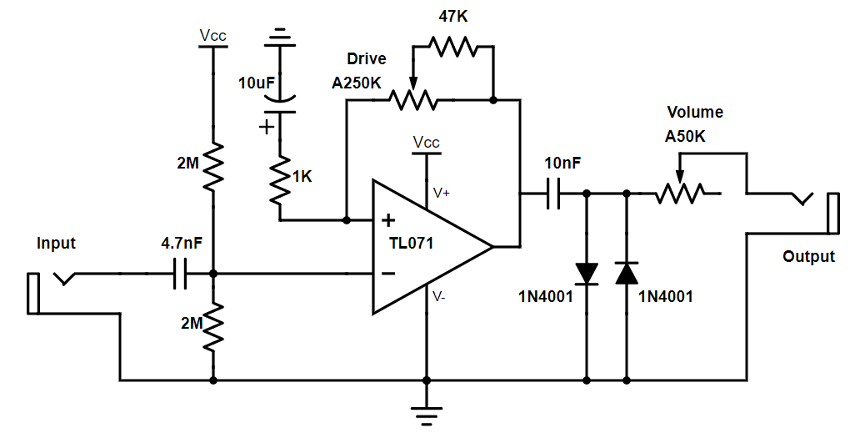

- SCHEMATIC This circuit is loosely based on the DOD250 or MXR Dist+ circuit with a few tweaks. |
 |
