crucialTrem - Tremolo Pedal |
![]() ![]() |

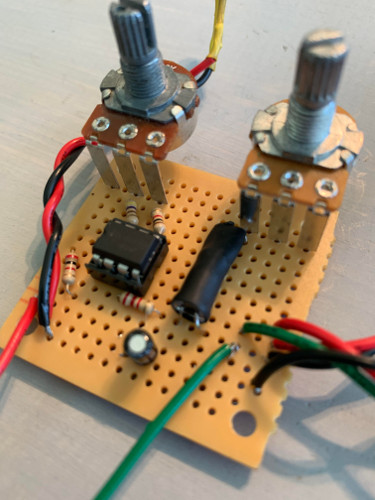

This is a super simple tremolo circuit that uses an LDR/LED as an optoisolater to vary the output to ground to create the effect. The LED creates a nice, soft triangular waveform. It uses an LM555 IC for LFO. It has Rate and Depth controls. Only 8 components and a couple pots! |
![]() |

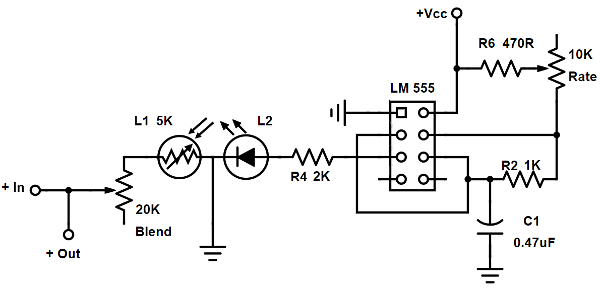

- SCHEMATIC |
![]() |
